Deck Cranes and Davits in Carbon Fiber

Presentation

line



























Davits and Cranes manufactured in carbon fiber for those seeking a strong and lightweight product with a pleasant aspect without corrosion problems.

The Deck Cranes are designed for the use in hard environment like the marine sector.

This allows their safe use in more sector like road transport, construction, etc.., also thanks to the wide range of models available.

FEMstrutture is pleased to satisfy any customization request.

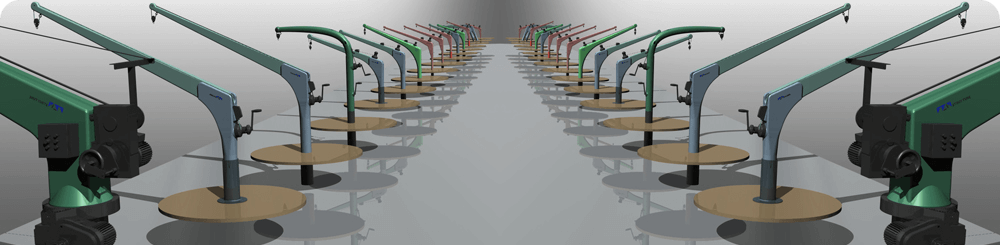

Carbon fiber davits manufactured in Femstrutture exposed in aligned way

Technical specification and properties:

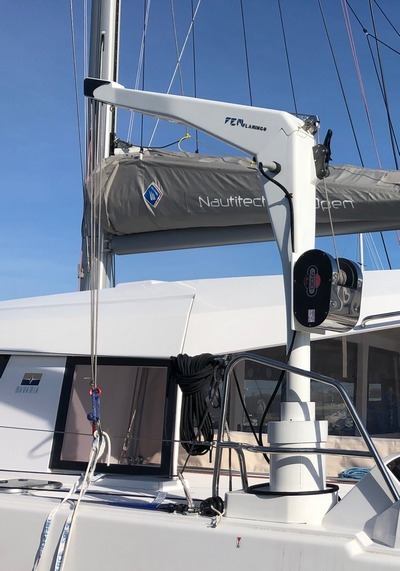

Flamingo with external socket
  • The davits are easily removable from its housing.
  • They can rotate 360°.
  • Frame in carbon fiber (standard modulus). Therefore no corrosion problems.
  • The davit can be with manual or electric winch.
  • Winch Harken or Lewmar.
  • Handle 250mm lock-in.
  • Clutch Spinlock or Lewmar.
  • Finish: White standard.
  • Socket in fiber glass with lubricant material.
  • Safety factor 3 on ultimate stress of materials. (4,5 where a Lloyd certificate (LY2) is requested)
  • carbon davit classic fem 2000
  • We have 3 types of standard models:
    • Flamingo:
      • Economic.
      • Foldable with fast system.
      • Very light.
      • SWL up to 150Kg.
      • carbon davit foldable with electric winch
      • Hoist line with ratio 3:1.
      • Hoist line with ratio 5:1 for hand use (without winch).
      • Weights:
        • About 8 Kg for the version 1100 (reach 1100mm).
        • About 8.5 Kg for the version 1400.
        • About 10 Kg for the version 1700.
        • About 12 Kg for the version 2000.

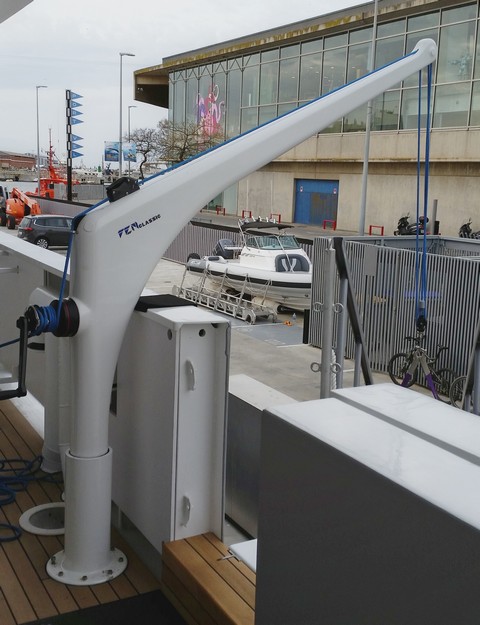

    • Classic:
      • Lightweight.
      • SWL up to 500 Kg (more upon request).
      • Hoist line with ratio 3:1.
      • Weights:
        • About 17 Kg for the version 1500 (reach 1500mm).
        • About 19 Kg for the version 2000.

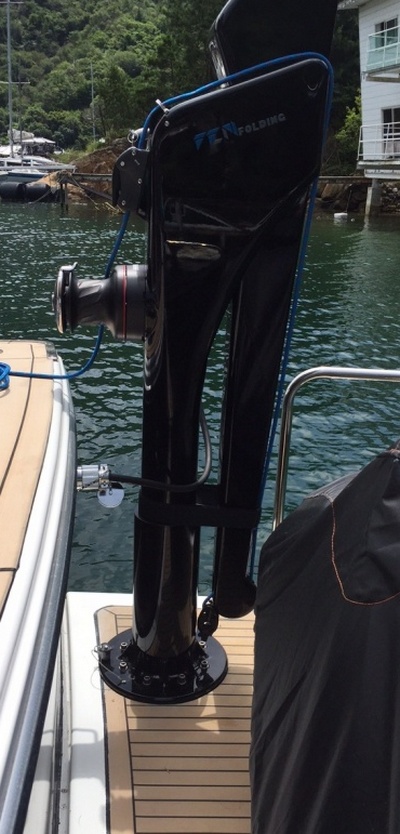

    • Folding:
      • Lightweight,
      • Foldable with fast system.
      • SWL up to 500 Kg (more upon request).
      • Hoist line with ratio 3:1.
      • Weights:
        • About 20 Kg for the version 1500 (reach 1500mm).
        • About 22 Kg for the version 2000.
        • About 29 Kg for the version 3000.
  • But we can supply also:
    • Custom model.
    • Solas Davits / Cranes
  • OPTIONAL
    • Electric winch (only Folding model).
    • Cap to cover the housing in polished stainless steel, handle included.
    • External housing fitted around the davit (when you haven't space below the deck)
    • Flamingo folded

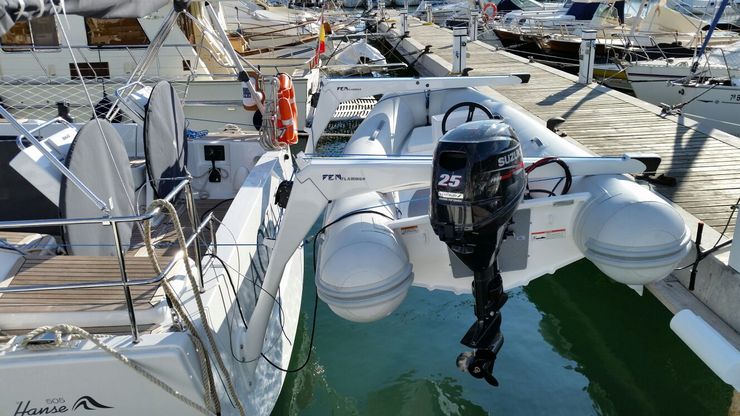

    • Fixed base with fast lock system to join the davit to the transom (eg twin davit to support/lift the tender at the stern of sailboats)

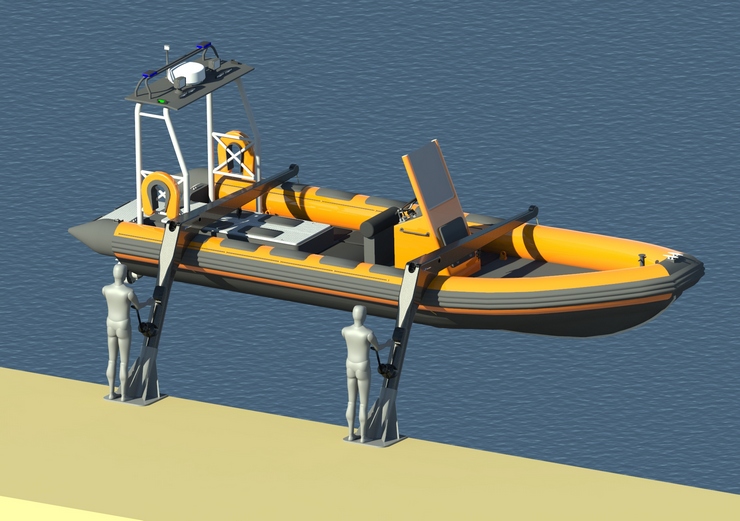

    • Fixed base with fast lock system to join the davit to the deck (eg twin davit to support/lift the tender)
    • Hand screws system to join the davit to the deck or transom (more economic)
    • Customised colour.
    • Carbon look finish.
  • Carbon davits
