Carbon Portable Cranes and Dock Davits

Folding model

line

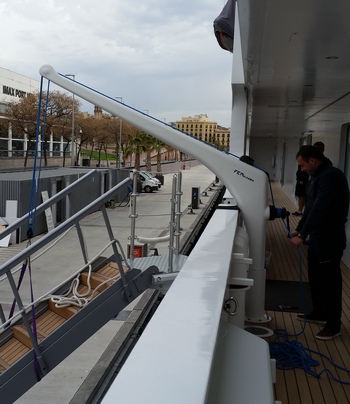

The Classic carbon cranes thanks a their semplicity are very light and permit to be portable and to be used as removable dock davits.

The davits can lift load up to 500 Kg by a manual winch.

The Classic model has two vesions:

  • Classic 1500 and
  • Classic 2000.
For more models, see the menu on the left.

Carbon davit model Classic 1500, reach 1500; SWL 500 Kg Carbon davit model Classic 2000, reach 2000; SWL 500 Kg
CLASSIC 1500
REACH = 1500 MM
SWL = 500 Kg
WEIGHT = 17 Kg

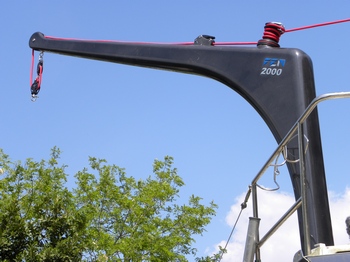

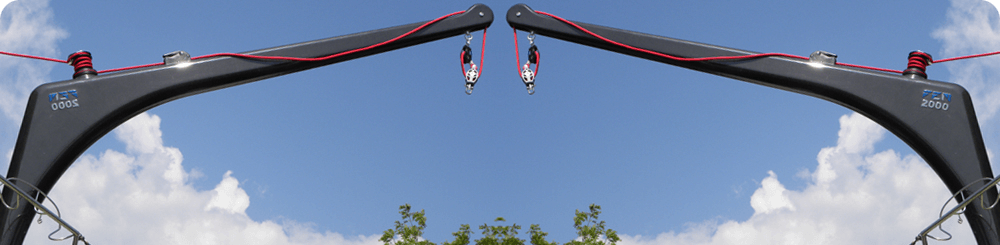

CLASSIC 2000
REACH = 2000 MM
SWL = 500 Kg
WEIGHT = 19 Kg

Technical specifications and properties:

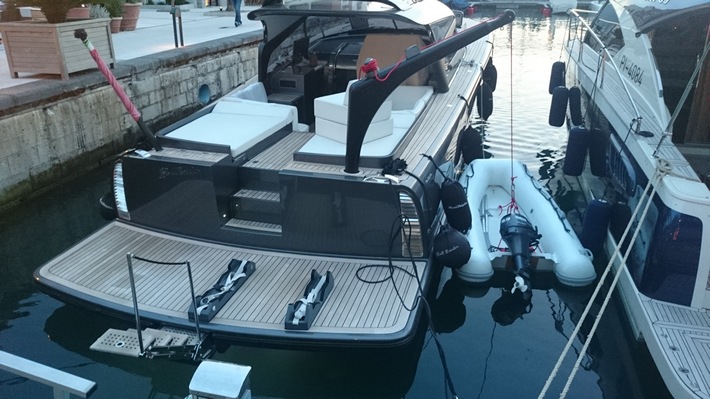

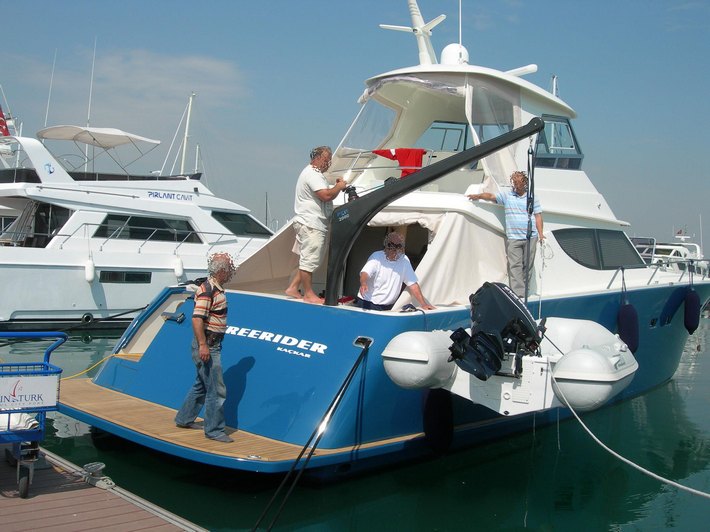

Portable davit in carbon fiber while is lifting an inflatable
Fig 1 - Lifting a rib

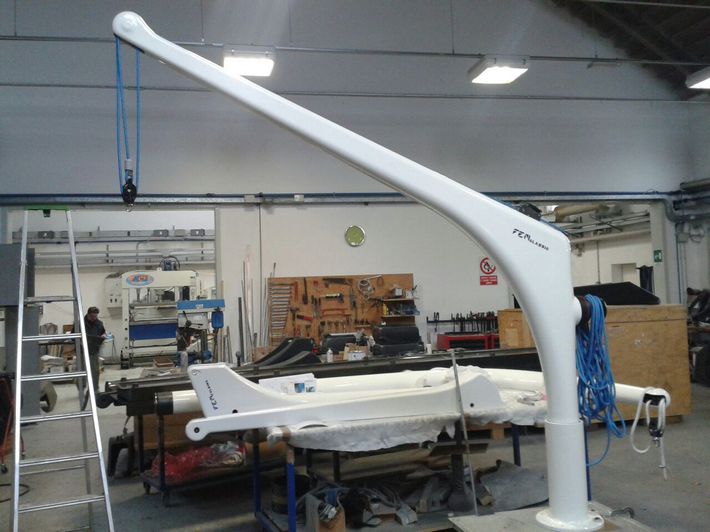

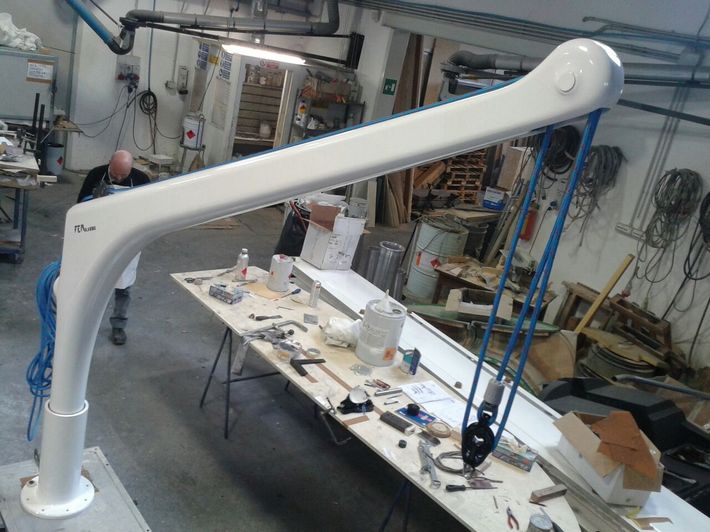

  • The cranes are builded in carbon fiber (prepreg) and cured in autoclave;
    • this means they are very light and therefore very easy to handle;
    • no corrosion problems
  • The cranes are inserted in a socket fixed on the deck;
    • this permits at the crane to rotate 360° around the vertical axis;
    • you can install more sockets to use the same crane in more point of the boat;
    • socket depth about 450mm.
  • If you have problem of space underneath the deck, then we can supply an external socket fitted directly around the davit;
        External socket with hand screw system on classic carbon davit with vertical winch
      Fig 2 - Crane with vertical lifting line controls.
    • these sockets can be joined to the deck in two ways:
      • with a fast lock system (within seconds, you lock the davit in safe way)
      • with 4 or 5 (it depends by the models) hand screws. This is a cheaper system
  • Winch Harken ( or Lewmar);
    • the winch can be both manual and electric;
    • the winch and the clutch can be positioned also in the vertical side .
  • Purchase with ratio 3:1.
  • Clutch of Spinlock ( or Lewmar).
  • Finishing: standard white or custom colours or carbon look.
