Foldable Davits to Lift Jet Ski

Folding model

line


























The removable davits, model Folding, are ideal to lift big loads like a jet ski and to be stored in small spaces.

Infact, the use of the carbon fiber gives to the FEMdavits strength and lightness.
Furthermore, the cranes are foldable and this reduces the size for the storage.

We have two standard models:
  • Folding 1500 and
  • Folding 2000.
However, FEMstrutture offers a wide range of davits / cranes for several uses as you can see on the menu on the left.

Carbon davit model FEM Folding 1500; reach 1500; SWL 500 Kg Carbon davit model FEM Folding 2000; reach 2000; SWL 500 Kg

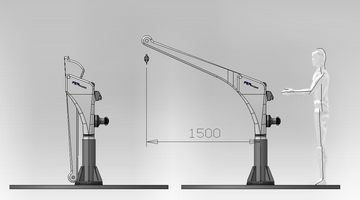

FOLDING 1500
REACH = 1500 MM
SWL = 500 Kg
WEIGHT = 20 Kg

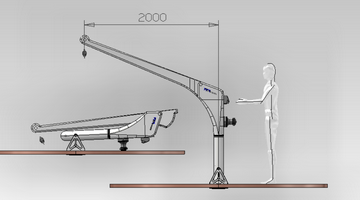

FOLDING 2000
REACH = 2000 MM
SWL = 500 Kg
WEIGHT = 22 Kg

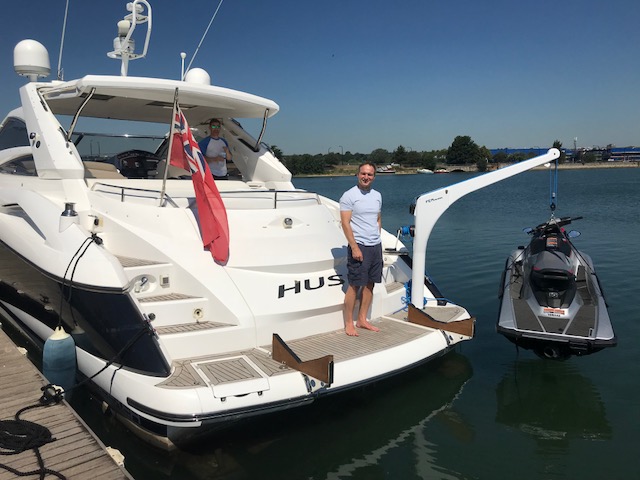

Video of the Davit to lift a Jetski

Technical specifications and properties:

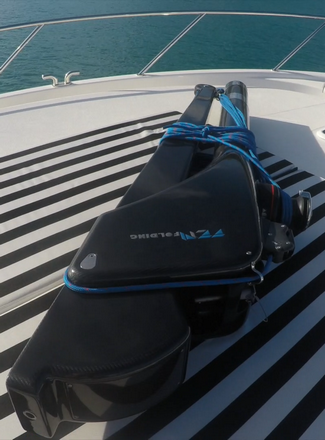

  • The davits are foldable (similar to the Flamingo models but stronger);
    • so they need a smaller space to be stored.
  • Builded in carbon fiber (prepreg) and cured in autoclave;
    • this means they are very light and therefore very easy to handle;
    • no corrosion problems
    • Davit in carbon fiber with external socket to avoid intrusive holes

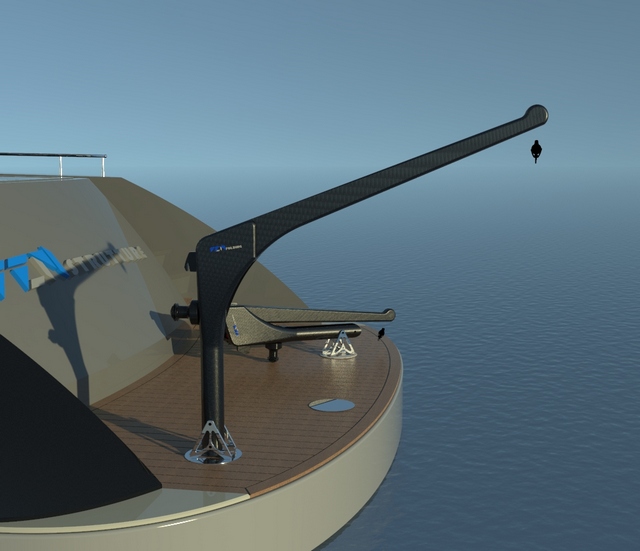

      Fig 1 - Davit with external socket and vertical winch
  • The davits are inserted in a socket fixed on the deck;
    • this permits at the crane to rotate 360° around the vertical axis;
    • you can install more sockets to use the same davit in more point of the boat;
    • socket depth about 450mm.
  • If you have problem of space underneath the deck, then we can supply an external socket fitted directly around the davit;
    • these sockets can be joined to the deck in two ways:

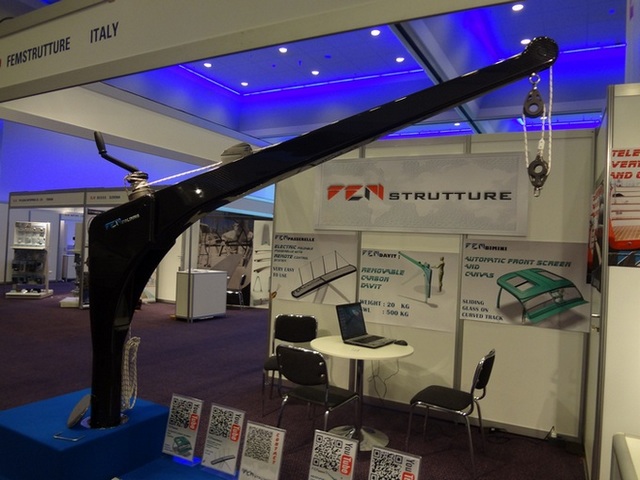

          Exposition of the foldable carbon davit at Mets of Amsterdam

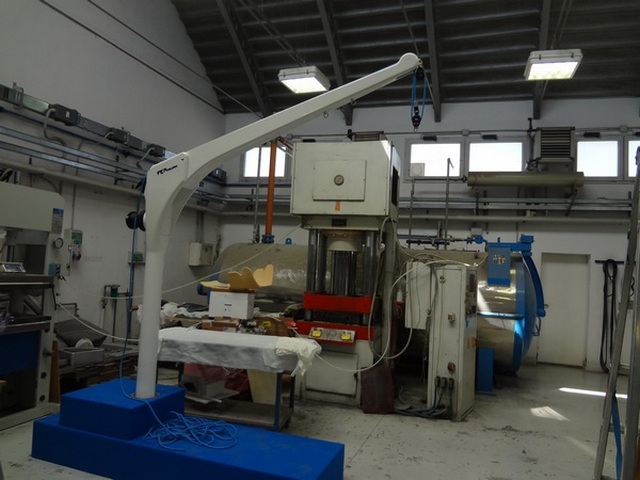

        Fig 2 - Presentation of the Foldable Carbon Davit
      • with a fast lock system (in 10 second you lock the davit in safe way)
      • with 4 or 5 (it depends by the models) hand screws. This is a cheaper system
  • Winch Harken ( or Lewmar);
    • the winch can be both manual and electric;
    • the winch and the clutch can be positioned also in the vertical side.
  •    Folding davit with removable boom
    Fig 3 - Folding davit with fast lock pin
  • Purchase with ratio 3:1.
  • Clutch of Spinlock ( or Lewmar).
  • Finishing: standard white or custom colours or carbon look.
   Foldable davit in the high configuration
Fig 3 - Folding davit with high pole
