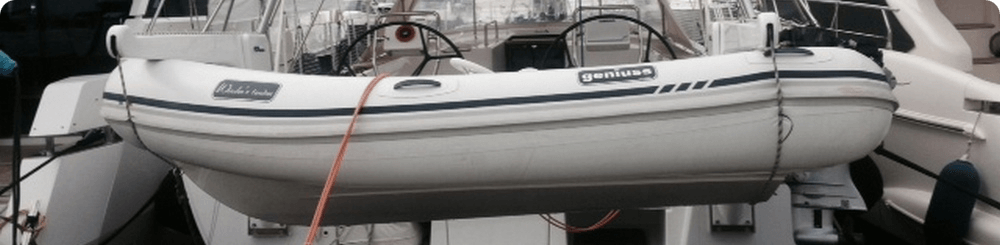

Couple of dinghy davits on the deck of a sailboats
LogoHOME

FEMdavits
Menu

Dinghy Davits for Sailboats

Folding model with base

line



























The dinghy davits are a possible configuration of the Folding davits when used in couple and joined to the stern of the sailboats with a fast lock system.

The davits are in carbon fiber and foldable.

Compared with the model Flamingo, the Folding can lift a bigger load, and compared with the Classic model, the Folding are ... foldable and this permits an easy stowage.

There are two standard models:

  • Folding 1500 and
  • Folding 2000.
The other models are showed in the menu on the left.

Carbon davits model FEM Folding 1500 with base to install on the transom and to lift a dinghy; reach 1500; SWL 500 Kg Carbon davits model FEM Folding 2000 with base to install on the deck and to lift a dinghy; reach 2000; SWL 500 Kg

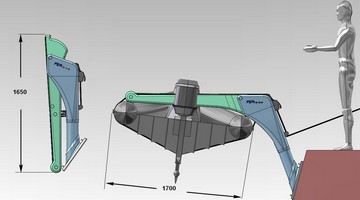

FOLDING 1500 transom
REACH = 1500 MM
SWL each one = 500 Kg
WEIGHT = 22 Kg

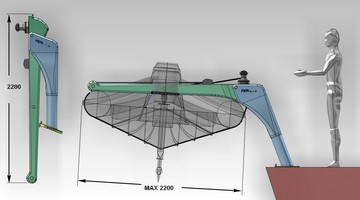

FOLDING 2000 deck
REACH = 2000 MM
SWL each one = 500 Kg
WEIGHT = 24 Kg

Video of the Foldable Davit System

Technical specification and properties:

  • The davits are foldable;
    • so, the stowage is possible in a reduced space.
  • The davits are builded in carbon fiber (prepreg) and cured in autoclave;
    • this means they are very light and therefore very easy to handle;
    • no corrosion problems

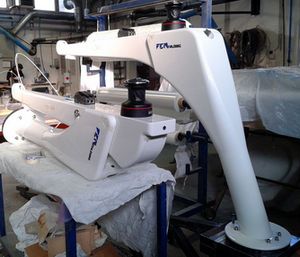

    • White carbon davits with base to install on deck and to support dinghies
      Fig 1 - Couple of davits with fast lock system
  • The Davits can be connected:
    • on horizontal surface, for example a deck;
    • on vertical or inclined surface like the transom of a boat.
  • The connecting base are of three type:
    • a fast lock system with traslation (see Fig 2);
    • a fast lock system with rotation 45° (see Fig 3) (both the solutions need of only some second )
    • a system with 4 or five hand screws (it depend by the models) This is a cheaper system.

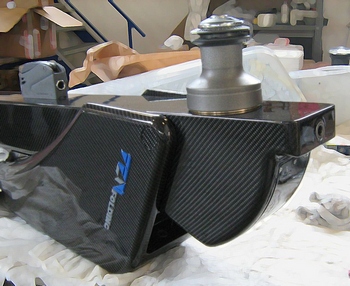

      Detail of a carbon look davit wit the FEM Folding logo
    Fig 2 - Folding davit detail
  • When the cranes are removed, the housings are covered by screwing plugs in polished stainless steel.
  • Winch Harken ( or Lewmar);
    • the winch can be both electri and manual;
    • the winch and the clutch can be positioned also in the vertical side of the davit.
  • Purchase with ratio 3:1.
  • Clutch of Spinlock ( or Lewmar).
  • Finishing: standard white or custom colours or carbon look.
  •    carbon twin davits for dingy with base for deck

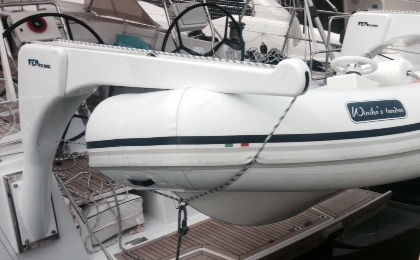

    Fig 3 -Davits for ribs
