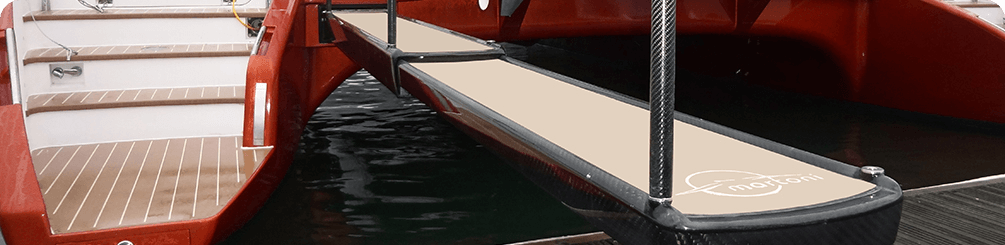

Telescopic gangway in carbon fiber on Martoni's catamaran
-HOME

Logo FEMgangway
Menu

Telescopic Yacht Gangway in Carbon Fiber

Model 4000

line













Telescopic gangway in carbon fiber. Ideal to install on yachts where compact dimensions and lightness are important.

Lightness is the result of the use of selected materials and components like carbon fiber, aluminum and the use of electric system instead of hydraulic.

The gangway in this example has an extension of 4 meters but you can choose a different dimensions.

On the left menu are showed the types of gangways supplied by FEMstrutture.

Telescopic gangway in carbon fiber model 4000
TELESCOPIC 4000
LENGTH = 4000 MM
SWL = 350 Kg
TOTAL WEIGHT = 90 Kg

Video : Carbon telescopic gangway

Technical specifications and properties:

  • The gangway is in carbon fiber:
    • standard modulus,
    • prepreg,
    • autoclave
  • e therefore:
    • lightweight;
    • no corrosion.
    Gangway in carbon fiber installed on a catamaran with one telescopic part

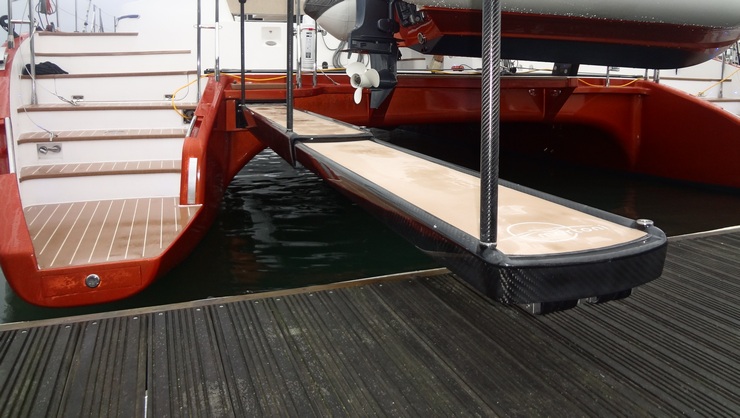

    Fig 1 - Telescopic gangway on a catamaran
  • Walkway in teak.
  • The gangway is electrically operated.
  • It can rotate vertically both in upper and lower direction.
  • It is supported by the dock when you are on but it moves up of about 30 cm when you get off from the gangway.
  • It can rotate horizontally for about half meter on the left and half on the right to follow the waves during the boarding.
  • Carbon stanchions with a fast lock system.

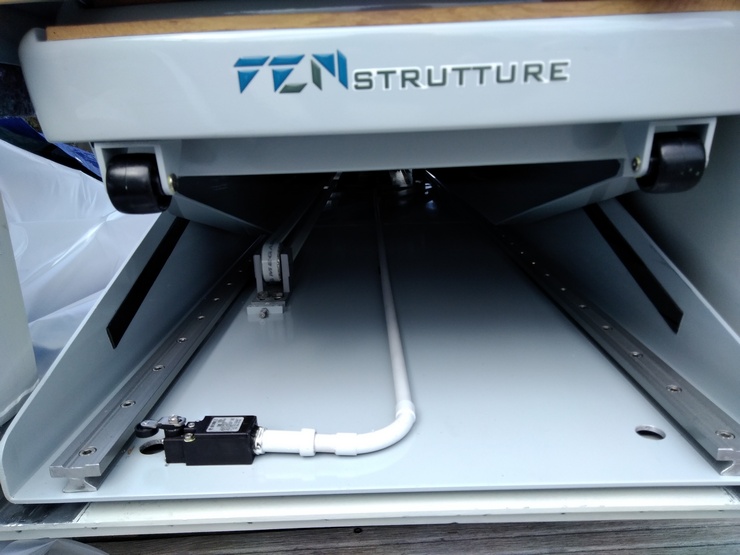

  • Trap door of the housing with an automatic system of opening and closing.
  • Detail of a stanchion socket on a carbon gangway

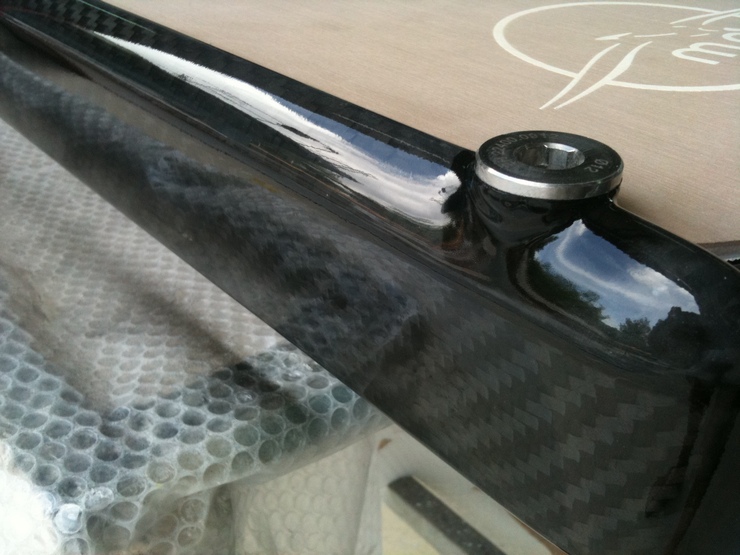

    Fig 2 -Detail of a stanchion socket
  • Finish carbon look or custom color.
  • Customizable name on the teak.
